Below are the data sheets for all our “off-the-shelf” IR Coating Solutions. We offer custom design services as well for virtually all infrared materials including Germanium, Zinc Selenide, Zinc Sulfide, Silicon, Chalcogenides, and other crystalline optical substrates.
3-5 Micron BBAR on Germanium
Double surface coating on germanium substrate.
<0.5% average reflectance per surface at normal AOI.
>96% total transmission at normal AOI.
Our infrared coatings are compliant with various durability specifications and are customizable to meet your project needs!

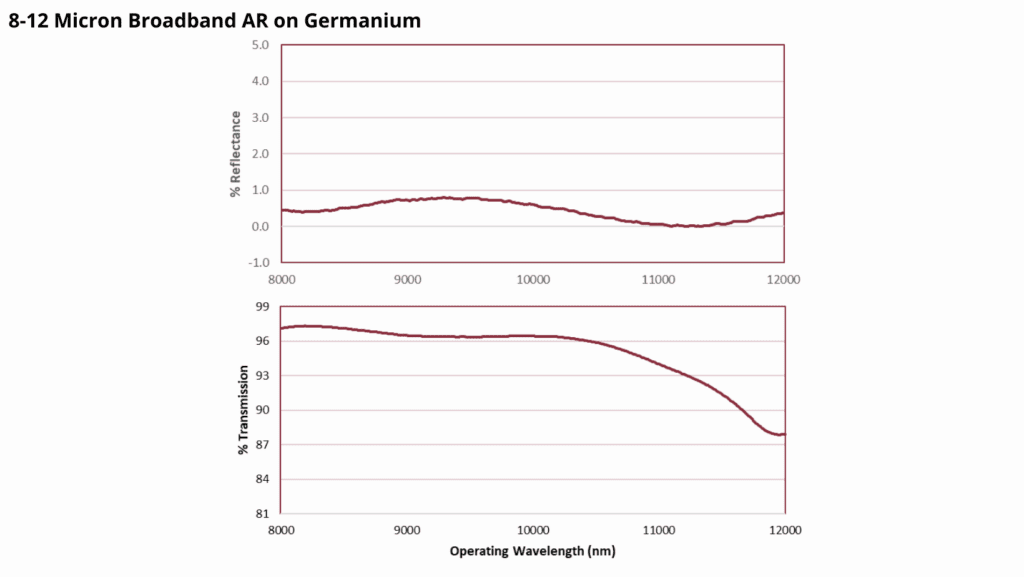

8-12 Micron BBAR on Germanium
Double surface coating on germanium substrate.
>97% total transmission at normal AOI.
Our infrared coatings are compliant with various durability specifications and are customizable to meet your project needs!

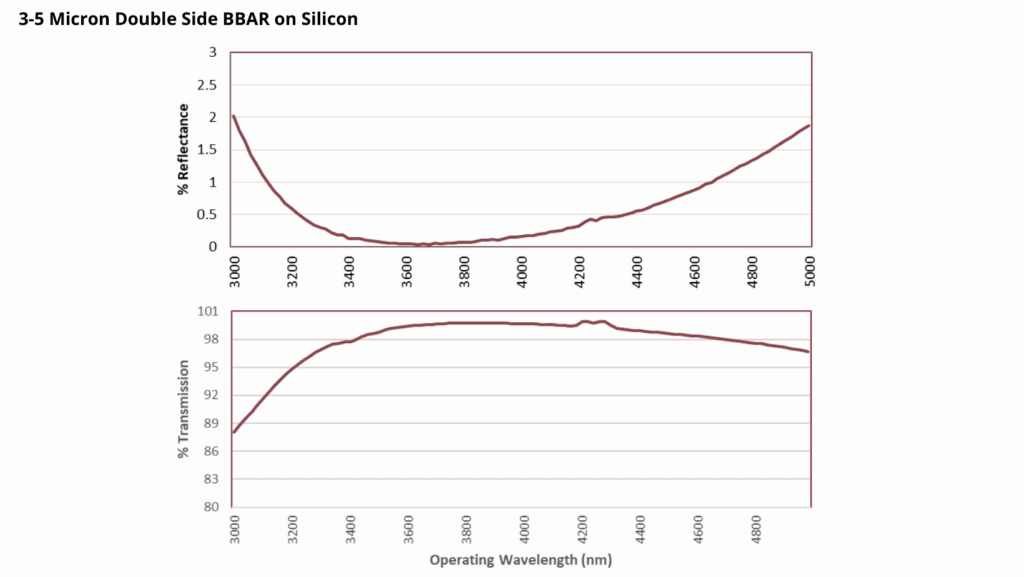

3-5 Micron BBAR on Silicon
Double surface coating on silicon substrate.
<0.6% average reflectance per surface at normal AOI.
>97% total transmission at normal AOI.
Our infrared coatings are compliant with various durability specifications and are customizable to meet your project needs!
8-12 Micron BBAR on Silicon
Single surface coating on silicon substrate.
<1% average reflectance per surface at 0-20 degrees AOI.
Our infrared coatings are compliant with various durability specifications and are customizable to meet your project needs!

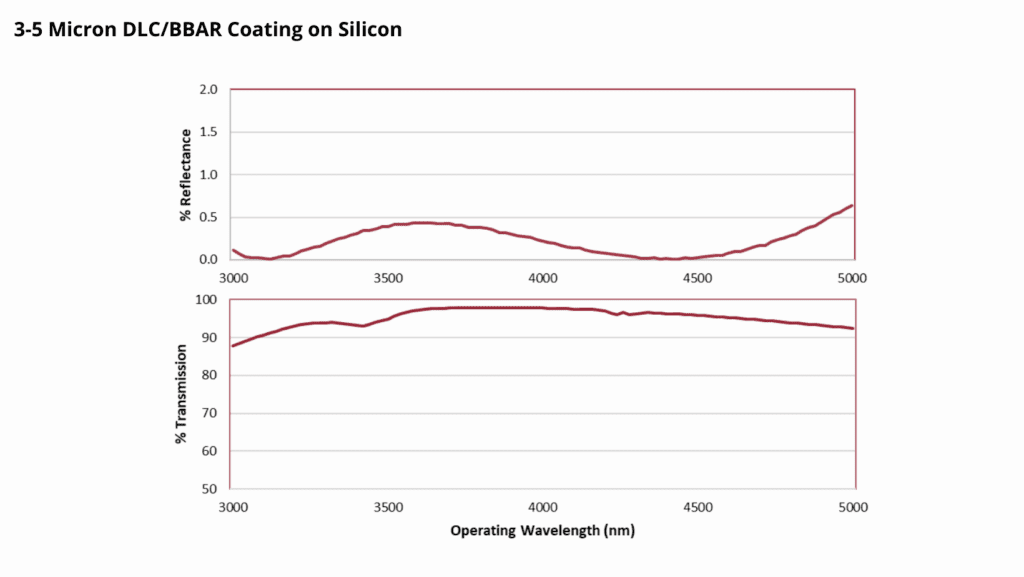

3-5 Micron DLC/BBAR on Silicon
Double surface coating on silicon substrate with one side DLC and the other BBAR.
<1.2% average reflectance per surface at normal AOI.
>90% total transmission at normal AOI.
Our infrared coatings are compliant with various durability specifications and are customizable to meet your project needs!

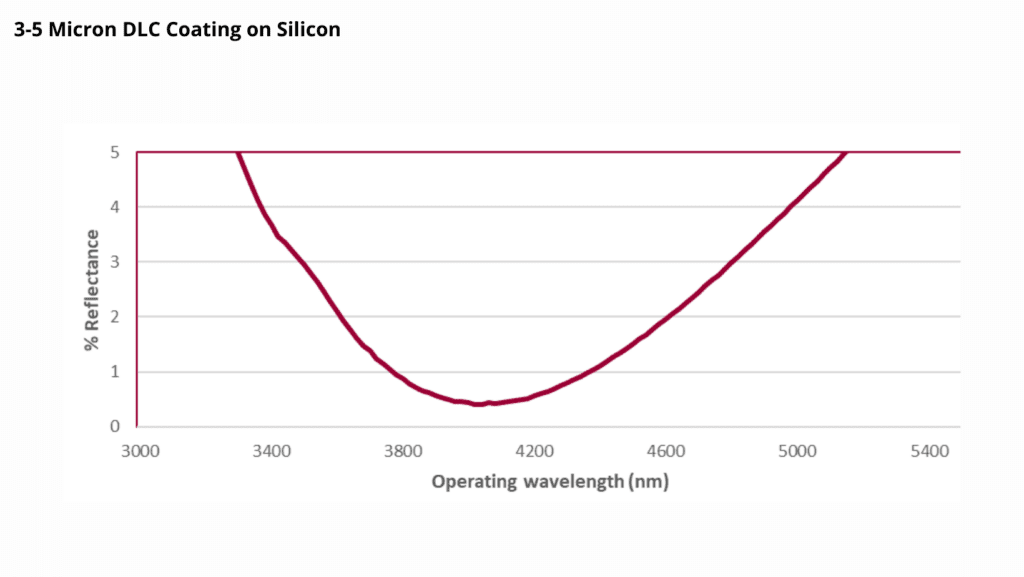

3-5 Micron DLC on Silicon
Single surface Diamond Like Carbon (DLC) coating on silicon substrate.
Reflectance of DLC can be optimized per customer specifications.
Our infrared coatings are compliant with various durability specifications and are customizable to meet your project needs!
3-5 Micron BBAR on ZnSe
Double surface coating on ZnSe substrate.
<0.6% average reflectance per surface at normal AOI.
>97% average total transmission at normal AOI.
Our infrared coatings are compliant with various durability specifications and are customizable to meet your project needs!

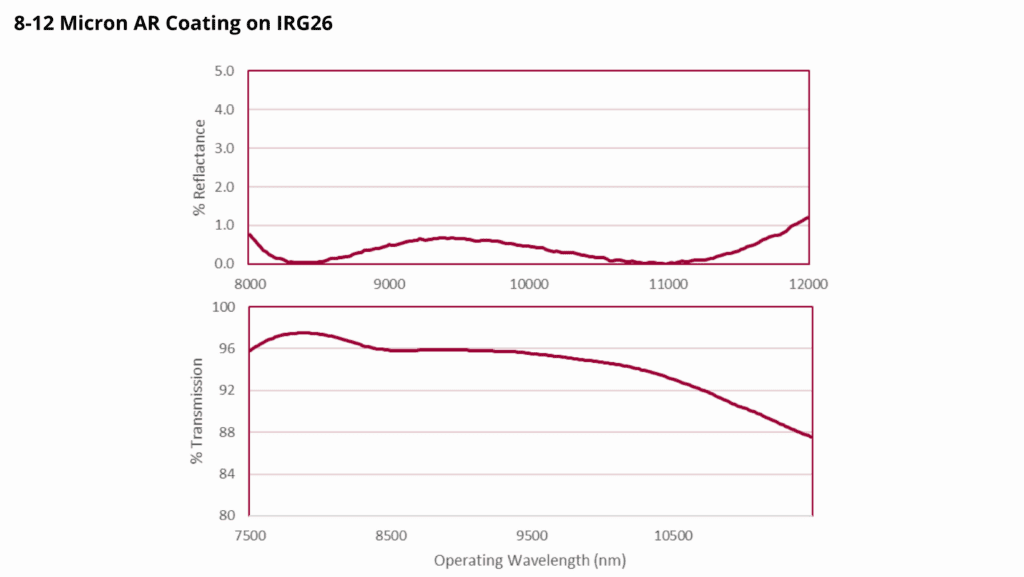

8-12 Micron BBAR on IRG26
Double surface coating on IRG26 substrate.
<1% average and <3% maximum reflectance per surface at normal AOI.
>92% average total transmission at normal AOI.
Our infrared coatings are compliant with various durability specifications and are customizable to meet your project needs!
